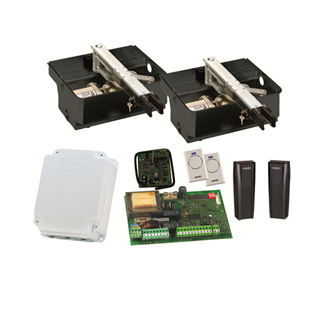

- FAAC 770 N 24V Double Kit

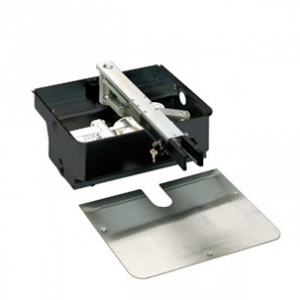

- Underground electro-mechanical operator
- Suitable for residential swing leaf gates
- Single-leaf length of 3.5 m
- Max weight of 500kg
- Access to operator is possible without removing the leaf

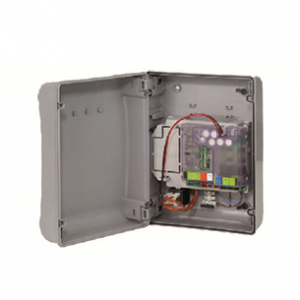

- New electronic control unit with anti-crushing device and virtual encoder with reverse function on detection of obstacle
- Emergency battery to ensure operation in case of a power cut (optional)
- Easy to use lever style manual release, protected by lock
- Option to add BUS XIB interface for applications using NON BUS devices
Technical Specifications
- Reduction ratio
- 1:1418
- Electric motor voltage
- 24 Vdc
- Power supply voltage
- 230 Vac
- Absorbed power
- 70 W
- Absorbed current
- 3 A
- Max traction thrust force
- 300 Nm
- Angular speed
- 6°/sec
- Type & frequency of use at 20°C
- 100%
- Leaf max. opening angle
- 110° (140° & 180° with optional kit)
- Leaf max. length
- 3.5m (110°), 3m (180°) & 2.5 (140°) with optional opening kit
- Weight
- 12.5 kg (27.8 kg with foundation box)
- Protection class
- IP 67
- Operator dimensions
- 360 x 150 x 140 mm
- Operating ambient temperature
- -20°C to +55°C
- Foundation box dimension
- 430 x 307.5 x 217 mm
