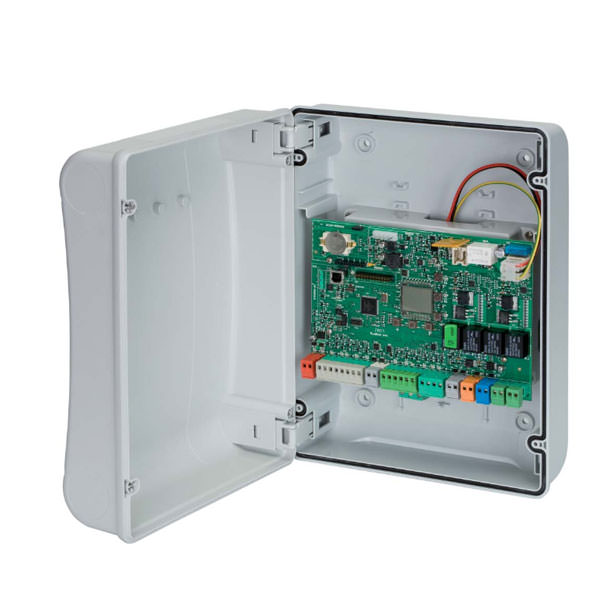

- FAAC E124 Control Board
- Power supply voltage 230Vac
- Absorbed power 4 W Stand-by approx 400 W max
- Motor max current 7 A
- Accessory power supply 24Vdc
- Accessory max current 500 mA 24Vdc – 500 mA BUS – 2 Easy
- 26 programmable functions
- Pause time programmable (from 0 – 10min)
- Work time programmable (from 0-10min)
Technical Specifications
- E124
- Power supply voltage
- 230 V ac (+6% -10%) 50 (60) Hz
- Absorbed power
- 4W Stand-by apporox 400W max.
- Motor max. current
- 7 A
- Accessory power supply
- 24 Vdc
- Accessory max. current
- 500mA 24Vdc - 500mA BUS - 2 Easy
- Operating ambient temp
- -20°C to +55°C
- Protection fuses
- power card 2.5A? control board self resetting
- Function logics
- Automatic (A), Semi-automatic (E), Automatic 1(A1), Stepped automatic (AP), Dead man (C), Automatic safety (S), Stepped safety (SP), Stepped semi-automatic (EP), Semi-automatic (B), Mixed logic (BC), Custom (Customisable, programmable via PC))
- Work Time
- Programmable (0 to 10min)
- Pause time
- Programmable (0 to 10min)
- Motor power
- Adjustable over 50 levels
- Inputs
- BUS 2 Easy, Inputs completely programmable via PC, Inputs for 4 limit switches
- Outputs
- 2 Programmable multifunction outputs
- Rapid connectors
- OMNIDEC( XF868), 5 Pin board connection for Minidec, decoder, RP/RP2 receiver
- Programming
- 3 keys( +,-,F) & LCD dispaly, via PC with USB cable, via PC
- Programmable functions
- Logic, pause time A, pause time B, thrust, speed, deceleration spaces, leaf delay, wind-proof facility, reverse stroke, soft-touch, stroke at opening & closing, initial thrust, deceleration speed, indicator lamp, fail-safe,programming of 2 Easy devices, service request, power-safe, battery charger timer function, battery operation, clock,time-out, pre-flashing time, motor type, encoder sensitivity
- Speed
- Adjustable over 10 levels
