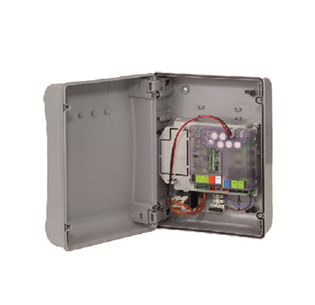

- FAAC E024S Control Board
- Power supply voltage 230Vac
- 24V panel
- Absorbed power 4 W
- Motor max load 150 W x 2
- Accessories max.current 250 mA
- BUS accessories max.current 400 mA
- Work time (time-out) 5 minute (fixed)
- Pause time varies according to learning (0-10 min)
- Terminal board inputs – open A, open B, Stop, BUS (I/O)
- Function logics EP, A,E, AP, A1,B, C
- Connector inputs – Power supply battery – module XF 868
- Terminal board outputs – Motors, Flashing lamp, power supply to accessories, electric lock, service light contact (90 sec fixed)
- Programmable functions – Logic ( A,E,EP,,A,B,C), Speed (high/low), Force (4 levels)
- Learning functions – Pause time, leaf 2 delay at closing
- Integrated radio channels type – DS, SLH (max 250 channels)
Technical Specifications
- E024S
- Power supply voltage
- 230 V ac (+6% -10%) 50 (60) Hz
- Absorbed power
- 4 W
- Motor max. load
- 150 W x 2
- Accessories max. current (+24V)
- 250 mA
- BUS accessories max. current
- 400 mA
- Operating ambient temp
- -20°C to +55°C
- Protection fuses
- F1= self-resetting: F2=T2A-250V
- Function logics
- EP, A,E, E, A1,B,C
- Work Time (time-out)
- 5 minute (fixed)
- Pause time
- Varies according to learning (0 to 10 min)
- Terminal board inputs
- Open A, Open B, Stop, BUS 2 Easy
- Connector inputs
- Power supply battery - module XF 868
- Terminal board outputs
- Motors, flashing lamp, power supply to accessories, electric lock, service light contact (90sec fixed)
- Programmable functions
- Logic (A, E, AP, EP, A, B, C), Speed (high/low), Force(4 levels)
- Learning functions
- Pause time, leaf 2 delay at closing
- Integrated radio channels type
- DS, SLH (max 250 channels)
