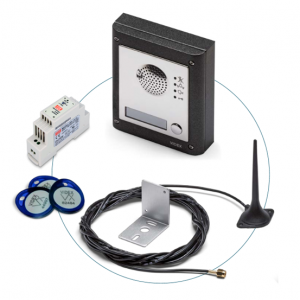

- VIDEX GSM PRO 4000 series Audio Kit with Keypad
- One way or two way GSM audio kit with integrated proximity access control and keypad
- GSM door kit employs mobile phone technology
- Available for a 1 -10 call button system. Please call for a price
- Dials to any Mobile or Landline number
- Modular system
- Vandal Resistant Option Available
- Flush or Surface Mounting
- Codelock
Technical Specifications
- GSM4KC-1/1S
- GSM4KC-2/ 2S
- Connection
- GSM 2G
- GSM 2G
- Outdoor Station
- 4000 Series
- 4000 Series
- Speaker & Proximity Unit Module
- 1 x 4810-1
- 1 x 4810-2
- LEDs
- 4: Busy, Ring, Speak, Door Open
- 4: Busy, Ring, Speak, Door Open
- Call Buttons
- 1
- 2
- Door Opening
- Built in Lock Relay Dry Contacts C, NC, NO
- Built in Lock Relay Dry Contacts C, NC, NO
- Call
- Electronic Call Tone
- Electronic Call Tone
- Keys/Relays
- Up to 1000 / 1
- Up to 1000 / 1
- Codelock Unit
- 1 x 4800M
- 1 x 4800M
- Codes / Relays
- 3 / 3
- 3 / 3
- Illumination
- Yes
- Yes
- Mounting Box
- 1 x 4852 / 1 x 4882
- 1 x 4852 / 1 x 4882
- Rainshield option
- 4872 / 4892
- 4872 / 4892
- Size`
- 2 modules
- 2 modules
- Mounting
- Flush / Surface
- Flush / Surface
- Antenna
- 1 x 433
- 1 x 433
- Accessories
- Connection cable, wall fix support
- Connection cable, wall fix support
- Power Supply Unit
- 1 x DR-15-12
- 1 x DR-15-12
- Input/Output/VA
- 230Vac / 12Vdc / 1.25A
- 230Vac / 12Vdc / 1.25A
- Size
- 1.5 Module A Type DIn Box (25 x 93 x 56mm)
- 1.5 Module A Type DIn Box (25 x 93 x 56mm)
- Mounting
- DIN Bar
- DIN Bar
- Packaging
- Giftbox
- Giftbox
- Size
- 29 x 29.5 x 7cm
- 29 x 29.5 x 7cm
- Weight
- 1.6Kg / 2Kg
- 1.6Kg / 2Kg
Special Features
- Call Buttons
- Up to 50
- Telephone Numbers per Button
- 4
- Dial to Open Numbers
- 1000
- Integrated Proximity Access
- Up to 1000 Users
- Voice Annunciation
- Yes
- Call Progress LEDs
- Yes, 4
- Programming
- SMS / USB
- Push to Exit Input
- Yes, 1
- Auxiliary Input
- Yes, 2
- Auxiliary Open Collector Outputs
- Yes, 2
- Lock Output
- Dry Contact Relay
- Input Voltage
- 12 - 24V ac/dc
- Event Log
- Yes, 4000 Events
- Bootloader
- Yes
- USB Port
- Yes, Micro
- Timebands
- Yes, 1
