- VIDEX 5000 Series Eclipse Hands Free Video Monitor
- Video monitors from the 5000 Series Eclipse range can be identified by the new compact design, high quality 3.5″TFT LCD colour display and “hands free” speech(half duplex or simplex depending on the model)
- 6 function buttons
- 8 control buttons; “door open”, “answer/recall” and “privacy” buttons are common in all models, the remaining buttons will vary depending on the model.
- Amoung the 8 control buttons 4 are reserved to adjust picture “brightness” and “hue”, the other 4 are used to adjust “loudspeaker volume”, “call tone volume” and to select the melody and adjust the melody volume depending on the model.
- All Eclipse models are supplied as surface mounting only, but flush mounting kits are available.
Technical Specifications
- 5456
- Display
- 3.5" Hi-res colour LCD TFT
- Conventional/Handsfree
- Hands Free
- Connection
- 6 WIRE BUS
- Buttons / Services¹
- 6: Answer / Push to talk / Off, Privacy. Door-open / Intercommunicating call, 3 Service buttons
- LEDs
- 4: Door Open, Privacy ON, On, Service
- Memory Board Option
- Yes, up to 512 pictures stored in built in memory
- Adjustment
- Call tone volume, Speech volume, Hue, Brightness
- Programming
- Privacy duration, Melody type, Number of rings
- Mounting
- Surface, Flush (requires 5981N¹ or 5983N²
- Finishing

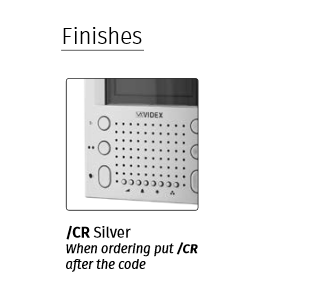

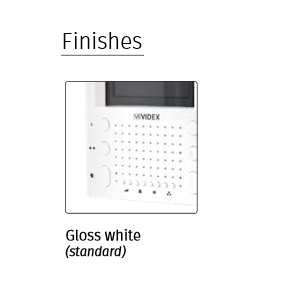

- Gloss White (standard), /CR Silver, /CA Carbon Fibre Effect
- Desktop Kit Option²
- 5931
- Footnote
- ¹
- A button can have multiple functions
- ²
- To be ordered seperately
