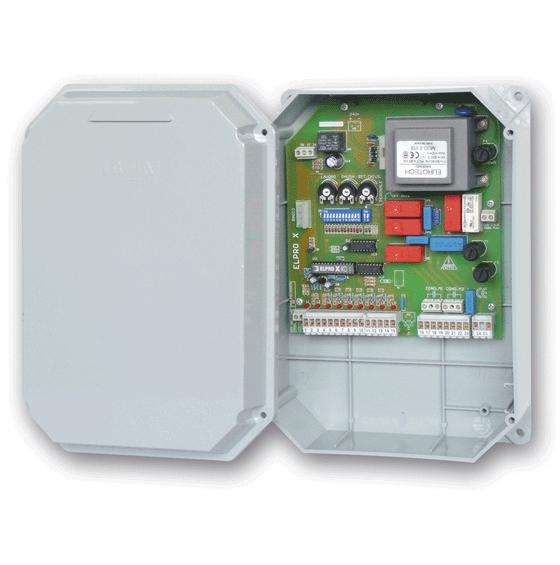

- Fadini Elpro 980 Control Panel
- ELPRO 980 electronic controller for BAYT 980 barriers
- Step-by-step function
- Deadman (hold on switched) control
- Automatic /Semi Automatic operations
- Preset to operate two syncronized barriers at a time (Master/slave)
- Connector to take a control card for traffic lights with 2/3 lights
- External time clock for opening and closing operations at preset times
- Single phase PCB power supply
- 230 V - 50Hz
- Three phase PCB power supply
- -
- Max. power of motors
- 1200 W
- Courtesy light output
- -
- Photocells/Keyswitch/Radio receiver output
- 24 V DC - 350mA max
- Pilot light output
- 24 V - 3W max
- DSA control output
- -
- Flasher output
- 230 V - 25 W max
- Motor run time
- 25 s max
- Dwell time
- 5 - 128 S
- Closing gate delay time
- -
- Pedestrian opening time
- -
- Box dimensions
- 235 x 314 x 139 mm
- Protection standards
- IP53
- Working temperature
- -20°C +55°C
