Name: FAAC Resist
Brand: FAAC
SKU: 403124/5/6*
Availability: InStock

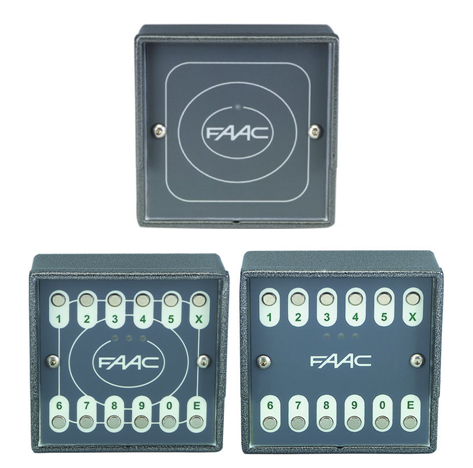

FAAC Resist
RESIST is access control device that can archive codes or cards and command opening a door.
Used with a control board
Sound an alarm in the event of unauthorised opening.
Control door status (open/closed)
The electronic control unit comprises two interconnected boards:
-The CPU board, which contains the terminals, buzzer, relays and interface for passive reader
– The keypad board with buttons, the LED indicators and antenna for passive proximity reader.
Configuring reader and loading codes or cards can be achieved via the keypad or using kit for card programming.
Dimensions (mm) H100 x L100 x D42
IP 55 Protection
Wall-mounted or column-mounted.

: RESIST-PS; RESIST -TPS
Type of reader: Passive proximity; Proximity & keypad
Reading distance: Max. 5cm; Max. 5cm
TAG reading (125 Khz): TAG Card / Keyring; TAG Card / Keyring
Structure: Pressure die-cast aluminium; Pressure die-cast aluminium
Dimensions: H100 x L100 x D42; H100 x L100 x D42
Front panel: Fibre glass with polycarbonate layer; Fibre glass with polycarbonate layer
Protection class: IP 55; IP 55
Buttons: No button; Mechanical buttons in stainless steel
Indication LED: Two-colour, 3 mm; Two-colour, 3 mm
Buzzer: Can be turned off; Can be turned off
Power supply: From the control board; From the control board
Absorption: Max. 100mA; Max. 160mA
Operating ambient temperature: -10°C to +55°C; -10°C to +55°C
Installation: Wall-mounted or column-mounted; Wall-mounted or column-mounted
Electrical connections: 5 x 0.5mm cable, with screen (max 100m); 5 x 0.5mm cable, with screen (max 100m)
