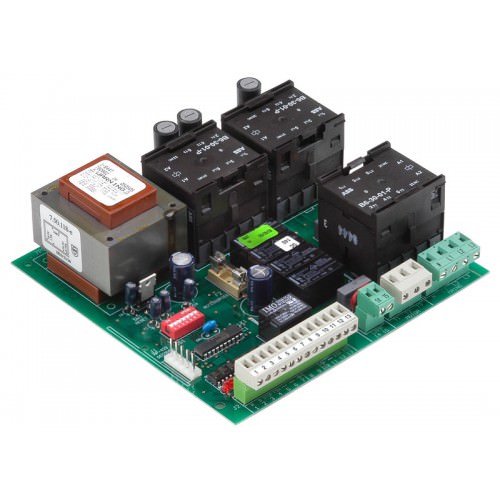

- FAAC 884 T Control Board
- Power supply voltage 230V 3ph
- Motor max load 1300 W
- Accessory max current 500 mA
- Accessory power supply 24 Vdc
- Four protection fuses 6.3 A (for each phase)
- 255 sec safety timing
Technical Specifications
- 884 T
- Power supply voltage
- 230Vac 3ph(+6%-10%) - 400Vac 3ph+N(+6%-10%) 50 (60) Hz
- Motor max. load
- 1300 W
- Accessories power supply
- 24 Vdc
- Accessories max. load
- 500 mA
- Operating ambient temperature
- -20°C to +55°C
- Power supply for indicator light
- 24 V(5W max)
- Two protection fuses
- 5 A transformer - 1.6 A accessories
- Safety timing
- 255 sec.
- Inputs
- Open, partial open, stop, closing safety devices, limit switches
- Outputs
- Indicator light, flashing lamp, motor, 24 Vdc accessories power supply
- Programming
- Pause time (5/10/15/30/60/120/180 sec0, A1/A2/S1/S2/E1/E2/B/C logics, pre-flashing
