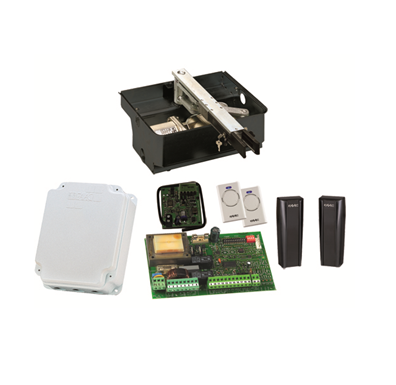

- FAAC 770N 230v Single Kit
- Underground electro-mechanical operator
- Suitable for residential swing leaf gates
- Single-leaf length of 3.5 m
- Max weight of 500kg
- Protection class IP67
- Access to operator is possible without removing the leaf
- Non reversing
- Easy to use lever style manual release, protected by lock
Technical Specifications
- Reduction ratio
- 1:1418
- Power supply voltage
- 230 V ac (+6% -10%) 50Hz
- Electric motor
- 1400 r.p.m.
- Absorbed power
- 380 W
- Absorbed current
- 1.7 A
- Thermal protection
- 140°C
- Max traction thrust force
- 330 Nm
- Angular speed
- 6°/sec
- Type & frequency of use at 20°C
- S3 -30%
- Leaf max. opening angle
- 110° (140° & 180° with optional kit)
- Operator dimensions
- 3.5m (110°), (3m(180°), 2.5m(140°) with opening kit)
- Weight
- 12.5kg (27.8kg with foundation box)
- Protection class
- IP 67
- Operator dimension
- 360 x 150 x 140 mm
- Operating ambient temp
- -20°C to +55°C
- Foundation box dimensions
- 430 x 307.5 x 214 mm
