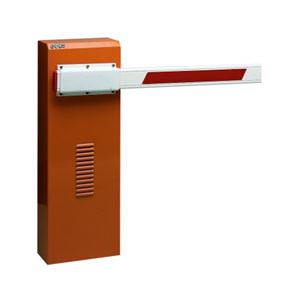

- FAAC 640 Operator
- Automatic barrier for beams up to 4m
- Hydraulic operator with opening and closing lock
- Suitable for heavy traffic
- Electronic deceleration
- The barrier status can be signaled to the traffic control devices
- Automatic, semi-automatic, parking, condo and custom logics
- External release with triangular key
- Built in detector, two independent channels
- BUS technology
* Please note when ordering a 640 barrier unit you will also require: Beam, Beam bracket, Foundation plate/resin kit
The package 640 includes: barrier body – for rectangular/round/pivoting round beam – for rectangular articulated beam), hydraulic drive transmission system complete with balancing spring,and triangular release key.
Please state left or right handed when ordering. There are different part numbers depending on which and the type of beam and accessories required. If ordering skirts and other accessories, this will affect springs and pumps also.
Technical Specifications
- 640
- Power supply voltage
- 230 V ac (+6% -10%) 50 (60) Hz
- Electric motor
- single-phase, bi-directional
- Absorbed power
- 220 W
- Absorbed current
- 1 A
- Motor rotation speed
- 1400 - 2800 r.p.m
- Pump flow rate
- 0.75 - 1 - 1.5 - 2 I/min
- Thermal protection on motor winding
- 120 ºC
- Effective torque
- 0 - 470 / 0 -340 / 0 - 250/ 0 -210 Nm
- Electronic deceleration
- Adjustable with cams
- Operating ambient temp
- -20°C to +55°C
- Weight
- 84 kg
- Type of oil
- FAAC HP OIL
- Barrier body treatment
- Cataphoresis
- Protection class
- IP 44
- Type of rectangular beam
- rectangular standard - rectangular standard with skirt, rectangular with top & bottom skirt
- Dimensions (LxDxH) in mm
- 380 x 200 x 1080
- Thrust capacitor
- 8 µF 400V / 16 µF 400V
- Cooling
- Forced air
